Specifications

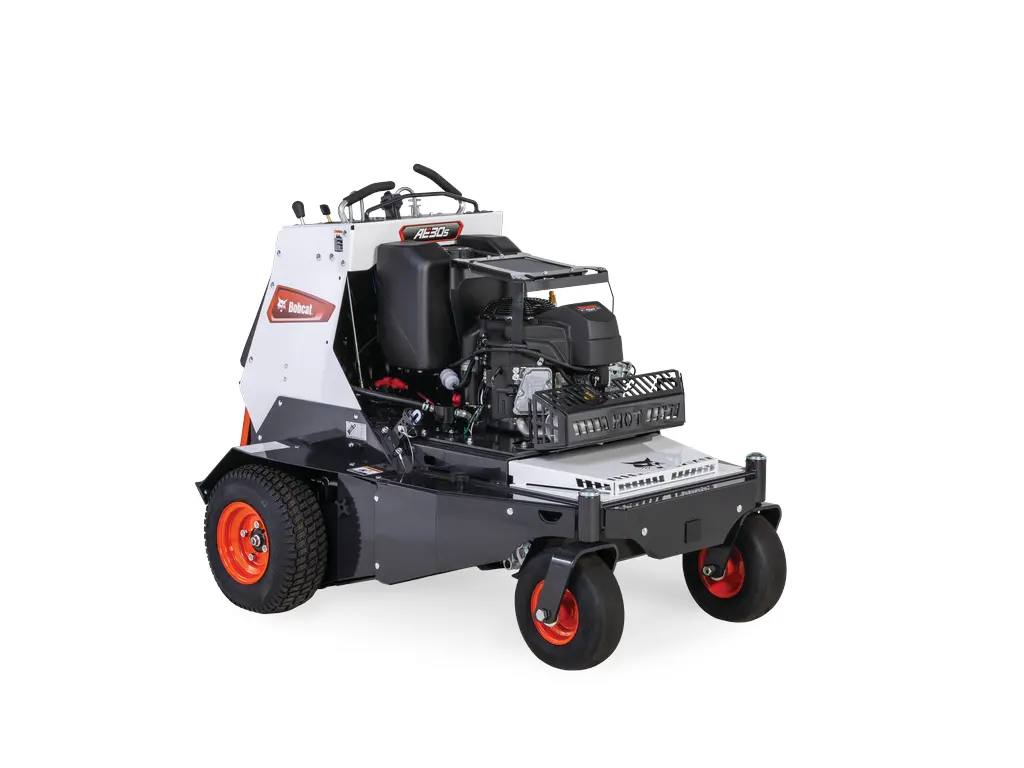

- Manufacturer: Bobcat
- Model: AE30S
- Engine Model: Kawasaki FS541V
- Engine Displacement: 36.8 in³
- Width: 47.2 in
- Drive System: Belt from engine to hydrostat input shafts; hydrostatic drive to jackshaft via auto-tensioned #50 chain; jackshaft to wheels and tines via (2) #50 chains
- Transmission: Hydro-Gear ZT-3200 transaxles; hydraulic cooling system
- Aeration Width: 30 in
- Aeration Pattern: 3.75 in x 8 in (95 mm x 203 mm)
- Maximum Aeration Depth: 5 in
- Engine Model: Kawasaki FS541V
- Engine Displacement: 36.8 in³
- Horsepower: 15 hp
- Fuel Capacity: 5 gal
- Maximum Productivity: 0 m²/h
- Weight: 1,235 lb
- Length: 60.5 in
- Width: 47.2 in
- Height: 48 in
- Length: Platform Down: 69.5 in
- Frame: Welded 7-gauge steel; 0.25 in wall steel tubing
- Front Tire(s): (2) 13 in x 5 in - 6 in smooth-tread pneumatic caster wheels
- Rear Tire(s): (2) 18 in x 6.5 in - 8 in turf-tread pneumatic drive wheels
- Drive System: Belt from engine to hydrostat input shafts; hydrostatic drive to jackshaft via auto-tensioned #50 chain; jackshaft to wheels and tines via (2) #50 chains
- Transmission: Hydro-Gear ZT-3200 transaxles; hydraulic cooling system
- Hydraulic Oil Capacity: 7 qt
- Max Forward Speed: 7.4 mph
- Max Reverse Speed: 3.1 mph
- Tine Type: 0.75 in (19 mm) formed from 0.08 in (2 mm) hardened chrome molybdenum alloy steel
- Aeration Width: 30 in
- Aeration Pattern: 3.75 in x 8 in (95 mm x 203 mm)
- Tine Engagement: Thumb-operated tine lift switch
- Max Tine Pressure: 0 lb
- Depth Adjustment: Hydraulic pressure control and (2) depth stop pins on either side of machine in 0.5" increments
- Maximum Aeration Depth: 5 in
