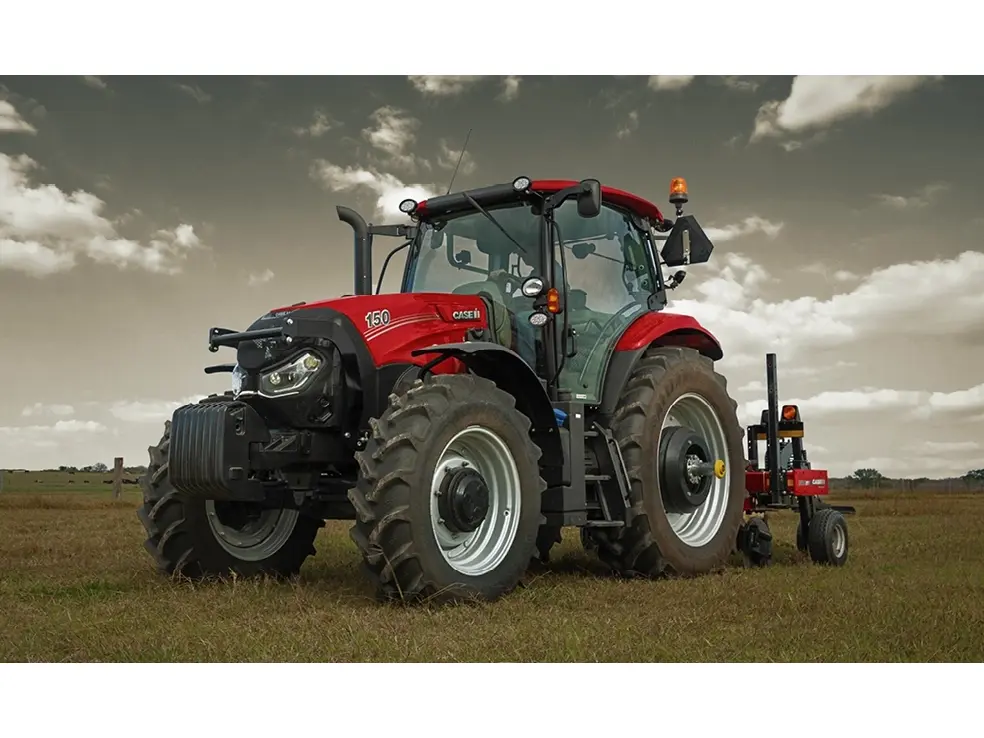

- Manufacturer: Case IH
- Model: Maxxum 150
- Classification Horsepower: 150
- Drive Type: Wheeled Tractor
- Engine Power Hp [ Kw ]: 145 [107]
- Maximum Power Hp [ Kw ]: 175 [129]
- Pto Power Hp [ Kw ]: 125 [93]
- 540 Available?: Yes
- Engine Make: Case Ih Fpt
- Engine Model: 6.7 L
- Transmission Type: Dual-clutch, 8 Powershift Speeds In 3 Ranges
- Number Of Forward Speeds: 23
- Number Of Reverse Speeds: 23
- Maximum Speed Forward - Mph (kph): 25 Or 31 (40 Or 50)
- Implement Pump Flow Gallons (us) / Min [ Lt/min ]: 39.6 [150]
- Number Of Remote Valves: 3 Std; 4 Max
- 3-point Hitch Category: Category 2
- Standard Lift Capacity 24 Inches Behind Pin Lbs [ Kg ]: 6990 [3170]
- Wheelbase/trackbase Inches [ Mm ]: 104 [2642]
- Height To Top Of Cab Inches [ Mm ]: 84.6 [2150]
- Overall Width Inches [ Mm ]: 98 [2489]
- Weight, Total Allowable Lbs [ Kg ]: 19841 [9000]
