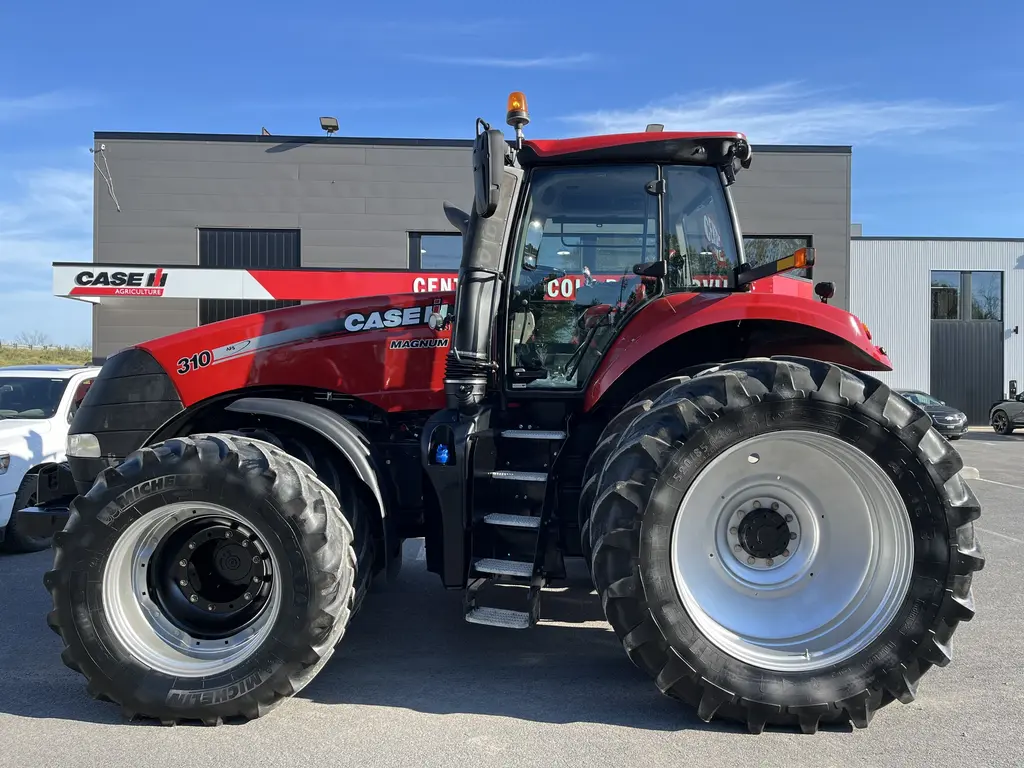

- Manufacturer: Case IH
- Model: Magnum 310
- Classification Horsepower: 310
- Drive Type: Wheeled Tractor
- Drive Configuration: 4wd
- Engine Power Hp [ Kw ]: 310 [228]
- Maximum Power Hp [ Kw ]: 380 [280]
- Pto Power Hp [ Kw ]: 265 [198]
- 540 Available?: Optional
- Engine Make: Case Ih Fpt
- Engine Model: 8.7 Liter
- Transmission Type: Full Powershift
- Number Of Forward Speeds: 19
- Number Of Reverse Speeds: 4
- Implement Pump Flow Gallons (us) / Min [ Lt/min ]: 44 [166]
- Number Of Remote Valves: 4 Std; 5 Or 6 Opt
- 3-point Hitch Category: Category 3/3n
- Standard Lift Capacity 24 Inches Behind Pin Lbs [ Kg ]: 15900 [7210]
- Wheelbase/trackbase Inches [ Mm ]: 120 [3050]
- Overall Width Inches [ Mm ]: 120 [3050]
