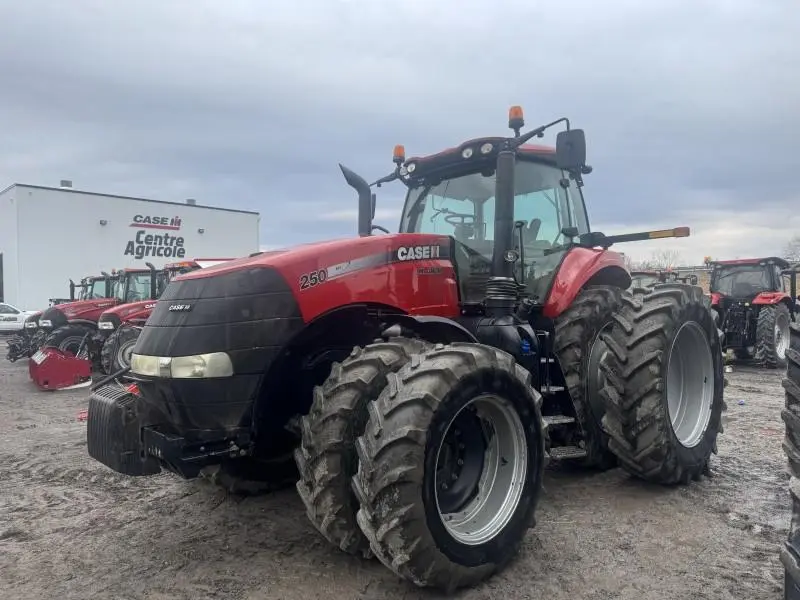

- Manufacturer: Case IH
- Model: Magnum 250
- Classification Horsepower: 250
- Drive Type: Wheeled Tractor
- Drive Configuration: 4wd
- Engine Power Hp [ Kw ]: 250 [184]
- Maximum Power Hp [ Kw ]: 320 [235]
- Pto Power Hp [ Kw ]: 205 [153]
- 540 Available?: Optional
- Engine Make: Case Ih Fpt
- Engine Model: 8.7 Liter
- Transmission Type: Full Powershift
- Number Of Forward Speeds: 19
- Number Of Reverse Speeds: 4
- Implement Pump Flow Gallons (us) / Min [ Lt/min ]: 44 [166]
- Number Of Remote Valves: 4 Std; 5 Or 6 Opt
- 3-point Hitch Category: Category 3/3n
- Standard Lift Capacity 24 Inches Behind Pin Lbs [ Kg ]: 14000 [6350]
- Wheelbase/trackbase Inches [ Mm ]: 120 [3050]
- Overall Width Inches [ Mm ]: 120 [3050]
