- Manufacturier : Case IH

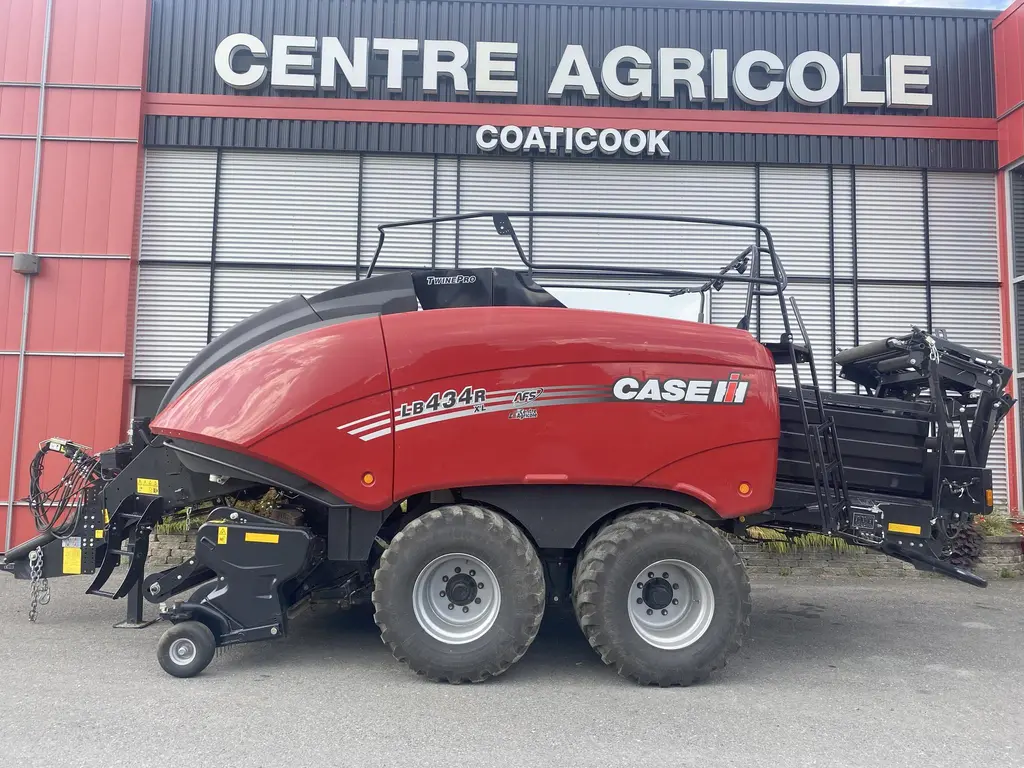

- Modèle : LB434XL
- Bale Width Inches [ Mm ] : 47.2 [1200]
- Bale Height Inches [ Mm ] : 35.4 [900]
- Bale Length - Minimum Inches [ Mm ] : 108 [2743]
- Bale Length - Maximum Inches [ Mm ] : 108 [2743]
- Pickup Working Width - In (mm) : 87.9 (2232)
- Outer Tine-to-tine Width - In (mm) : 80.6 (2046)
- Number Of Tines : 64 Double (128)
- Tine Spacing Inches [ Mm ] : 2.6 [66]
- Number Of Tine Bars Or Tine Rows : 4
- Gauge Wheel Size : Two 15x6.00-6 4pr; Caster Opt.
- Cutter Knives : See Rotor Cutter Version
- Feeder Description : 3 Packer Forks; 9 Single Tines
- Stuffer Description : Fork Type With 6 Tines
- Plunger Speed, Strokes/minute : 48
- Plunger Stroke Inches [ Mm ] : 28 [710]
- Drive Protection : Shearbolt, Overrunning Clutch & Slip Clutch
- Knotter Type : Double Knot
- Number Of Knotters : 6
- Twine Ball Storage, Quantity : 32
- Bale Density Control : Monitor Controlled; Manual Override Std.
- Bale Weighing System : Factory Fitted Option
- Baler Monitor With Screen (non-isobus) : Afs Pro 300 Or Pro 700 For Non-iso Tractor
- Isobus Compatibility : Isobus Class 3 Capability
- Tire Size, Single Axle : 600/55-22.5 Or 700/40-22.5
- Tire Size, Tandem Axle : 500/50-17 Or 550/45 R22.5
- Length W/bale Chute Folded Inches [ Mm ] : 325.2 [8259]
- Baler Width - In (mm) : 109.5 To 117.5 (2782 To 2984)
- Height, Single Axle - In (mm) : 123.3 (3133)
- Height, Tandem Axle - In (mm) : 123.3 (3133)
- Pto Speed Rpm : 1000
- Number Of Remote Hydraulic Valves : 2
