- Manufacturier : Case IH

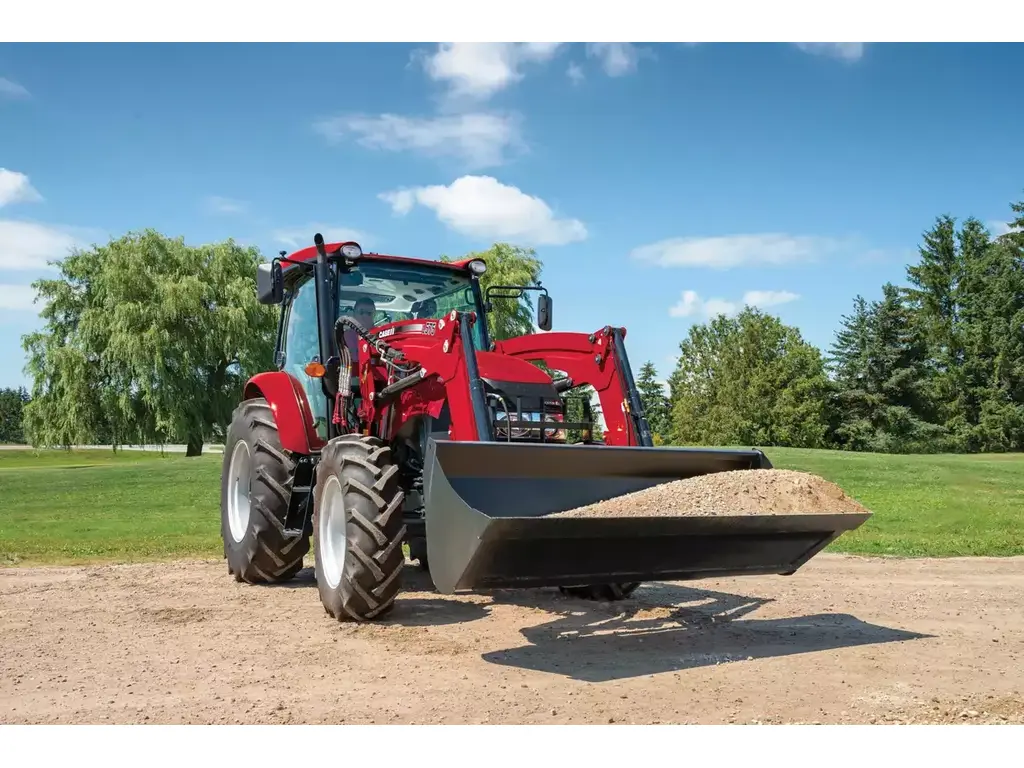

- Modèle : L575 for Farmall Medium Utility C
- Mechanical (msl), Hydraulic (hsl), Or Non-self-leveling (nsl) : Mechanical
- Matching Tractor Model Or Series, First : Farmall 90c, 100c, 110c, 120c
- Tractor Tires Listed In Loader Specification : 14.9-24 Front; 18.4-34 Rear
- Lift Capacity To Maximum Height, At Bucket Pivot Pin Lbs [ Kg ] : 2690 [1220]
- Lift Capacity To Max. Height, 31.5" (800 Mm) Forward Of Bucket Pivot Pin Lbs [ Kg ] : 3240 [1470]
- Lift Capacity To 59" (1.5 M) Height, At Bucket Pivot Pin Lbs [ Kg ] : 3290 [1490]
- Lift Capacity To 59" (1.5 M) Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbs [ Kg ] : 3330 [1510]
- Maximum Lift Height To Bucket Pivot Pin Inches [ Mm ] : 135 [3430]
- Maximum Lift Height Under Level Bucket Inches [ Mm ] : 124 [3140]
- Clearance With Bucket Dumped 45 Degrees, Lowest Point Of Cutting Edge Inches [ Mm ] : 100 [2550]
- Boom Breakout Force, At Pivot Pin, Bucket At Ground Lbf [ Kn ] : 4180 [18.6]
- Boom Breakout Force, 31.5" (800 Mm) Forward Of Bucket Pivot Pin At Ground Lbf [ Kn ] : 3550 [15.8]
- Bucket Rollback Force At Max. Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 3060 [13.6]
- Bucket Rollback Force At 59" (1.5 M) Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 4220 [18.8]
- Bucket Rollback Force At Ground, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 4055 [18]
- Reach At Maximum Lift Height, Bucket Cutting Edge To Tractor Front, Bucket Dump At 45 Degrees Inches [ Mm ] : 35 [900]
- Reach With Bucket On Ground, Level, From Centerline Of Front Wheels To Bucket Cutting Edge Inches [ Mm ] : 86 [2180]
- Maximum Dump Angle, Loader Fully Raised ° : 52
- Maximum Rollback Angle, Bucket At Ground ° : 41
- Digging Depth, From Ground Line To Bottom Of Bucket With Cutting Edge Horizontal Inches [ Mm ] : 6.3 [160]
- First Coupler Type Available : Skid-steer Style
- Second Coupler Type Available : Euro Style Dealer Install
- Third Function Valve Available : Dealer Install
- Cushioned Hydraulic Ride Control : Dealer Install
- Loader Quick-attach-detach From Tractor : Standard
