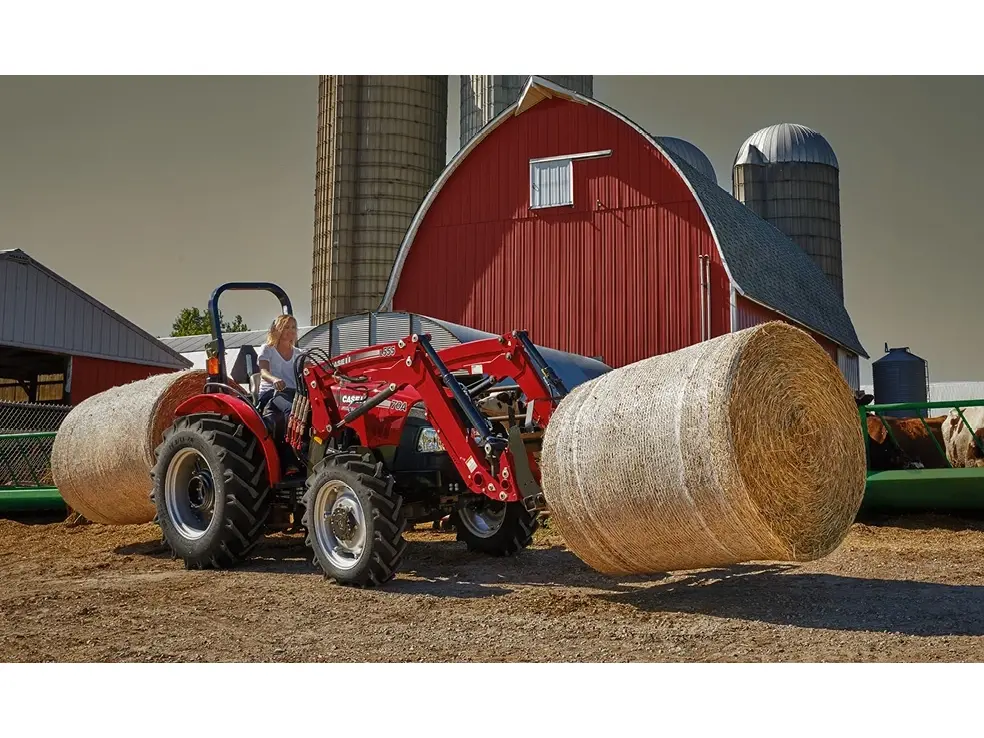

- Manufacturier : Case IH
- Modèle : L555
- Mechanical (msl), Hydraulic (hsl), Or Non-self-leveling (nsl) : Mechanical
- Matching Tractor Model Or Series, First : Farmall 50a, 60a, 70a, Tier 4b
- Matching Tractor Model Or Series, Second : Farmall 45a, 55a, Tier 3
- Tractor Tires Listed In Loader Specification : 9.5-24 Front; 14.9-28 Rear
- Lift Capacity To Maximum Height, At Bucket Pivot Pin Lbs [ Kg ] : 2840 [1290]
- Lift Capacity To Max. Height, 31.5" (800 Mm) Forward Of Bucket Pivot Pin Lbs [ Kg ] : 3000 [1360]
- Lift Capacity To 59" (1.5 M) Height, At Bucket Pivot Pin Lbs [ Kg ] : 3020 [1370]
- Lift Capacity To 59" (1.5 M) Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbs [ Kg ] : 3110 [1410]
- Maximum Lift Height To Bucket Pivot Pin Inches [ Mm ] : 119 [3030]
- Maximum Lift Height Under Level Bucket Inches [ Mm ] : 109 [2770]
- Clearance With Bucket Dumped 45 Degrees, Lowest Point Of Cutting Edge Inches [ Mm ] : 85 [2150]
- Boom Breakout Force, At Pivot Pin, Bucket At Ground Lbf [ Kn ] : 3950 [17.6]
- Boom Breakout Force, 31.5" (800 Mm) Forward Of Bucket Pivot Pin At Ground Lbf [ Kn ] : 3350 [14.9]
- Bucket Rollback Force At Max. Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 2450 [10.9]
- Bucket Rollback Force At 59" (1.5 M) Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 3330 [14.8]
- Bucket Rollback Force At Ground, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 3280 [14.6]
- Reach At Maximum Lift Height, Bucket Cutting Edge To Tractor Front, Bucket Dump At 45 Degrees Inches [ Mm ] : 30 [750]
- Reach With Bucket On Ground, Level, From Centerline Of Front Wheels To Bucket Cutting Edge Inches [ Mm ] : 84 [2130]
- Maximum Dump Angle, Loader Fully Raised ° : 49
- Maximum Rollback Angle, Bucket At Ground ° : 46
- Digging Depth, From Ground Line To Bottom Of Bucket With Cutting Edge Horizontal Inches [ Mm ] : 5.5 [140]
- First Coupler Type Available : Skid-steer Type
- Second Coupler Type Available : Euro Type
- Third Function Valve Available : Optional
- Cushioned Hydraulic Ride Control : Optional
- Loader Quick-attach-detach From Tractor : Standard
