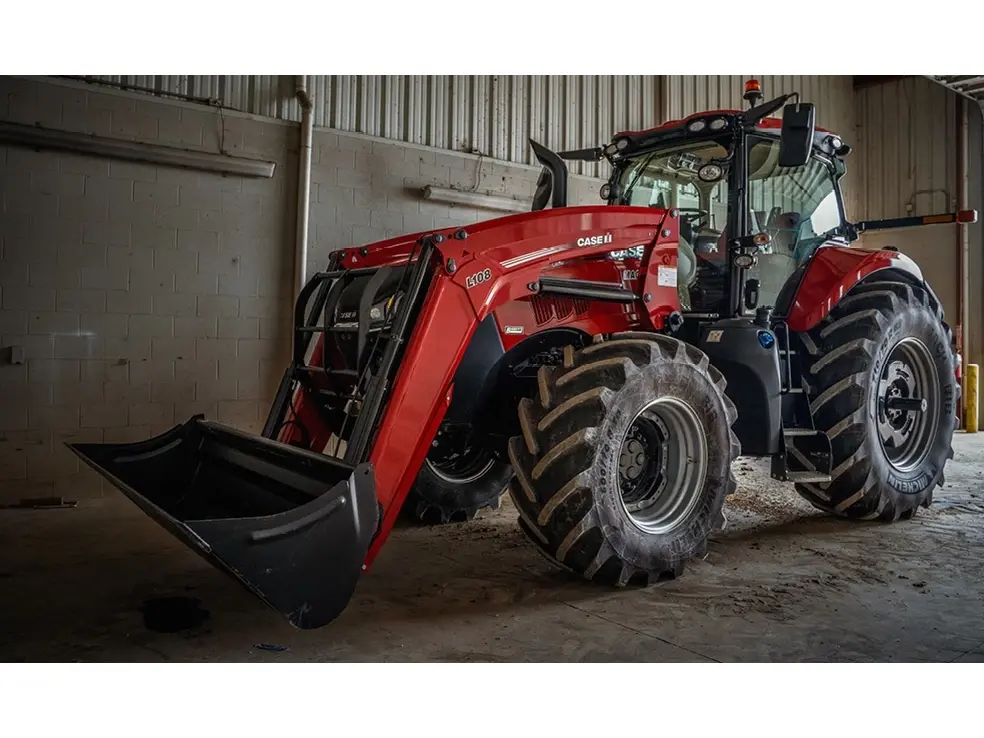

- Manufacturier : Case IH
- Modèle : L108
- Mechanical (msl), Hydraulic (hsl), Or Non-self-leveling (nsl) : Mechanical
- Matching Tractor Model Or Series, First : Magnum 180-240
- Lift Capacity To Maximum Height, At Bucket Pivot Pin Lbs [ Kg ] : 5952 [2700]
- Lift Capacity To Max. Height, 31.5" (800 Mm) Forward Of Bucket Pivot Pin Lbs [ Kg ] : 6151 [2790]
- Lift Capacity To 59" (1.5 M) Height, At Bucket Pivot Pin Lbs [ Kg ] : 7760 [3520]
- Lift Capacity To 59" (1.5 M) Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbs [ Kg ] : 6680 [3030]
- Maximum Lift Height To Bucket Pivot Pin Inches [ Mm ] : 174 [4410]
- Maximum Lift Height Under Level Bucket Inches [ Mm ] : 162 [4110]
- Clearance With Bucket Dumped 45 Degrees, Lowest Point Of Cutting Edge Inches [ Mm ] : 136 [3450]
- Boom Breakout Force, At Pivot Pin, Bucket At Ground Lbf [ Kn ] : 9171 [40.8]
- Boom Breakout Force, 31.5" (800 Mm) Forward Of Bucket Pivot Pin At Ground Lbf [ Kn ] : 8620 [38.3]
- Bucket Rollback Force At Max. Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 6768 [30.1]
- Bucket Rollback Force At Ground, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 10714 [47.7]
- Reach With Bucket On Ground, Level, From Centerline Of Front Wheels To Bucket Cutting Edge Inches [ Mm ] : 120 [3050]
- Maximum Dump Angle, Loader Fully Raised ° : 49
- Maximum Rollback Angle, Bucket At Ground ° : 65
- First Coupler Type Available : Euro Style
- Third Function Valve Available : Optional
- Cushioned Hydraulic Ride Control : Standard
- Loader Quick-attach-detach From Tractor : Standard
