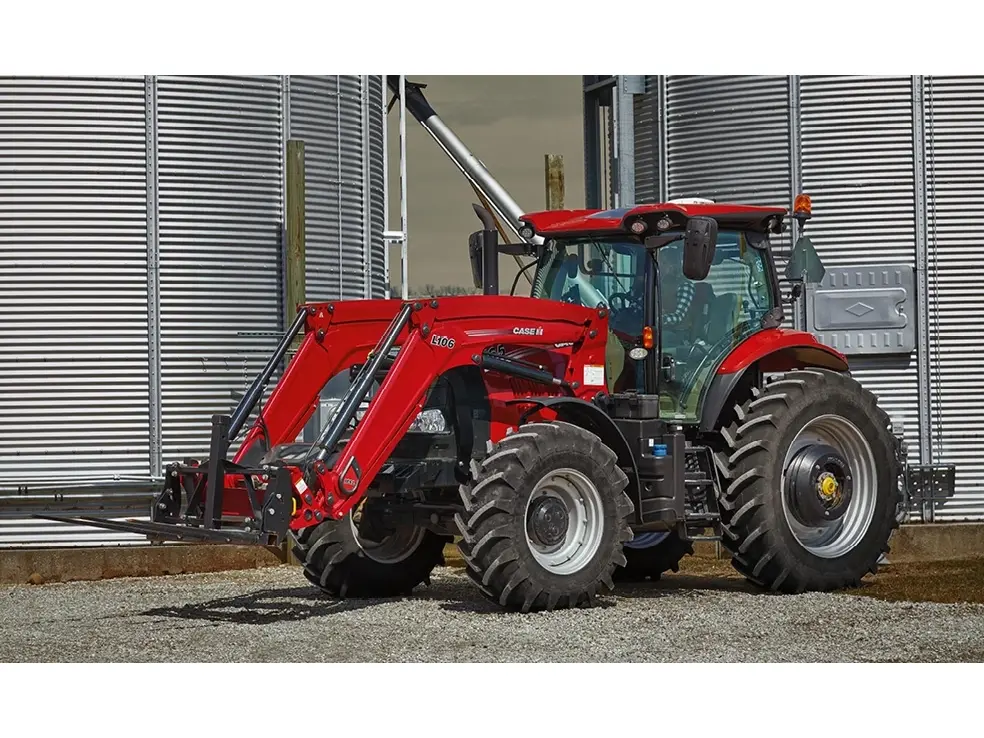

Case IH L106

Spécifications

  • Manufacturier : Case IH
  • Modèle : L106
  • Mechanical (msl), Hydraulic (hsl), Or Non-self-leveling (nsl) : Mechanical
  • Matching Tractor Model Or Series, First : Puma 150-165 Short Wheel Base
  • Lift Capacity To Maximum Height, At Bucket Pivot Pin Lbs [ Kg ] : 5225 [2370]
  • Lift Capacity To Max. Height, 31.5" (800 Mm) Forward Of Bucket Pivot Pin Lbs [ Kg ] : 5578 [2530]
  • Lift Capacity To 59" (1.5 M) Height, At Bucket Pivot Pin Lbs [ Kg ] : 6063 [2750]
  • Lift Capacity To 59" (1.5 M) Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbs [ Kg ] : 6107 [2770]
  • Maximum Lift Height To Bucket Pivot Pin Inches [ Mm ] : 167 [4230]
  • Maximum Lift Height Under Level Bucket Inches [ Mm ] : 154 [3920]
  • Clearance With Bucket Dumped 45 Degrees, Lowest Point Of Cutting Edge Inches [ Mm ] : 129 [3270]
  • Boom Breakout Force, At Pivot Pin, Bucket At Ground Lbf [ Kn ] : 6878 [30.6]
  • Boom Breakout Force, 31.5" (800 Mm) Forward Of Bucket Pivot Pin At Ground Lbf [ Kn ] : 6415 [28.5]
  • Bucket Rollback Force At Max. Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 6460 [28.7]
  • Bucket Rollback Force At Ground, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 10274 [45.7]
  • Reach At Maximum Lift Height, Bucket Cutting Edge To Tractor Front, Bucket Dump At 45 Degrees Inches [ Mm ] : 38 [960]
  • Reach With Bucket On Ground, Level, From Centerline Of Front Wheels To Bucket Cutting Edge Inches [ Mm ] : 107 [2730]
  • Maximum Dump Angle, Loader Fully Raised ° : 58
  • Maximum Rollback Angle, Bucket At Ground ° : 48
  • Digging Depth, From Ground Line To Bottom Of Bucket With Cutting Edge Horizontal Inches [ Mm ] : 7.5 [190]
  • First Coupler Type Available : Euro Style
  • Third Function Valve Available : Optional
  • Cushioned Hydraulic Ride Control : Standard
  • Loader Quick-attach-detach From Tractor : Standard
