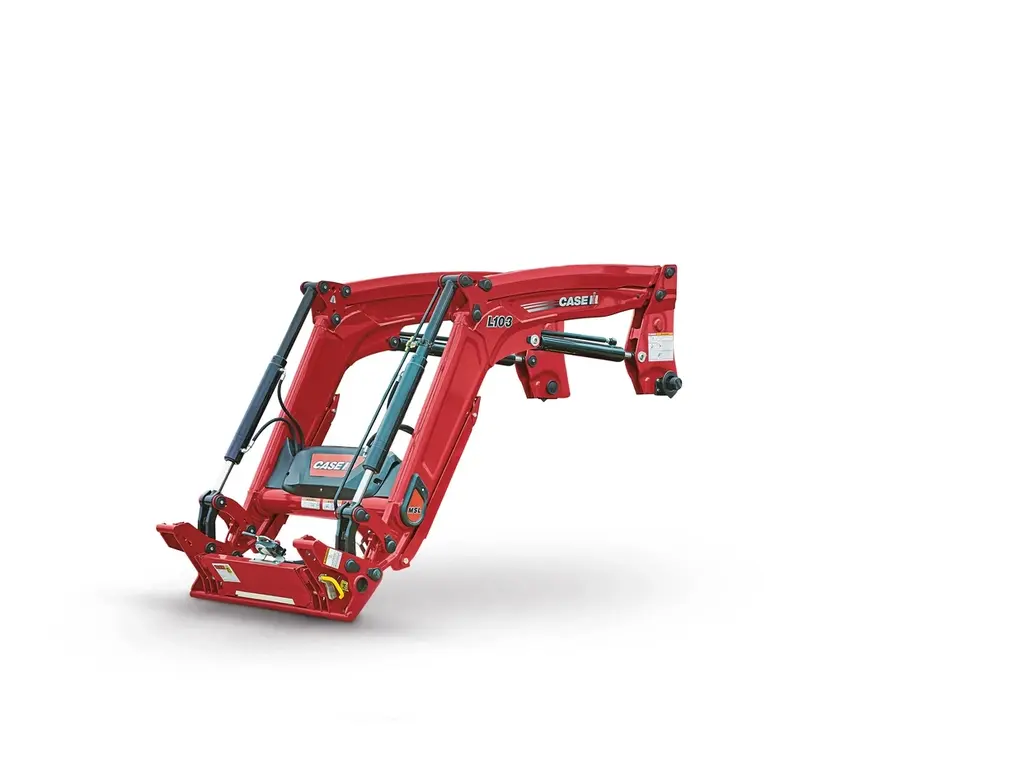

Case IH L103 For Farmall Medium Utility C

Spécifications

  • Manufacturier : Case IH
  • Modèle : L103 For Farmall Medium Utility C
  • Mechanical (msl), Hydraulic (hsl), Or Non-self-leveling (nsl) : Non
  • Matching Tractor Model Or Series, First : Farmall 90c, 100c, 110c, 120c
  • Lift Capacity To Maximum Height, At Bucket Pivot Pin Lbs [ Kg ] : 3549 [1610]
  • Lift Capacity To Max. Height, 31.5" (800 Mm) Forward Of Bucket Pivot Pin Lbs [ Kg ] : 2205 [1000]
  • Lift Capacity To 59" (1.5 M) Height, At Bucket Pivot Pin Lbs [ Kg ] : 3946 [1790]
  • Lift Capacity To 59" (1.5 M) Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbs [ Kg ] : 2932 [1330]
  • Maximum Lift Height To Bucket Pivot Pin Inches [ Mm ] : 141 [3580]
  • Maximum Lift Height Under Level Bucket Inches [ Mm ] : 129 [3270]
  • Clearance With Bucket Dumped 45 Degrees, Lowest Point Of Cutting Edge Inches [ Mm ] : 103 [2610]
  • Boom Breakout Force, At Pivot Pin, Bucket At Ground Lbf [ Kn ] : 4608 [20.5]
  • Boom Breakout Force, 31.5" (800 Mm) Forward Of Bucket Pivot Pin At Ground Lbf [ Kn ] : 3175 [14.1]
  • Bucket Rollback Force At Max. Height, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 2866 [12.7]
  • Bucket Rollback Force At Ground, 31.5" (800 Mm) Forward Of Pivot Pin Lbf [ Kn ] : 5093 [22.7]
  • Reach At Maximum Lift Height, Bucket Cutting Edge To Tractor Front, Bucket Dump At 45 Degrees Inches [ Mm ] : 39 [980]
  • Reach With Bucket On Ground, Level, From Centerline Of Front Wheels To Bucket Cutting Edge Inches [ Mm ] : 95 [2410]
  • Maximum Dump Angle, Loader Fully Raised ° : 60
  • Maximum Rollback Angle, Bucket At Ground ° : 46
  • Digging Depth, From Ground Line To Bottom Of Bucket With Cutting Edge Horizontal Inches [ Mm ] : 5.5 [140]
  • First Coupler Type Available : Skid-steer Style
  • Second Coupler Type Available : Euro Style
  • Third Function Valve Available : Optional
  • Cushioned Hydraulic Ride Control : Optional
  • Loader Quick-attach-detach From Tractor : Standard
