- Manufacturier : Case IH

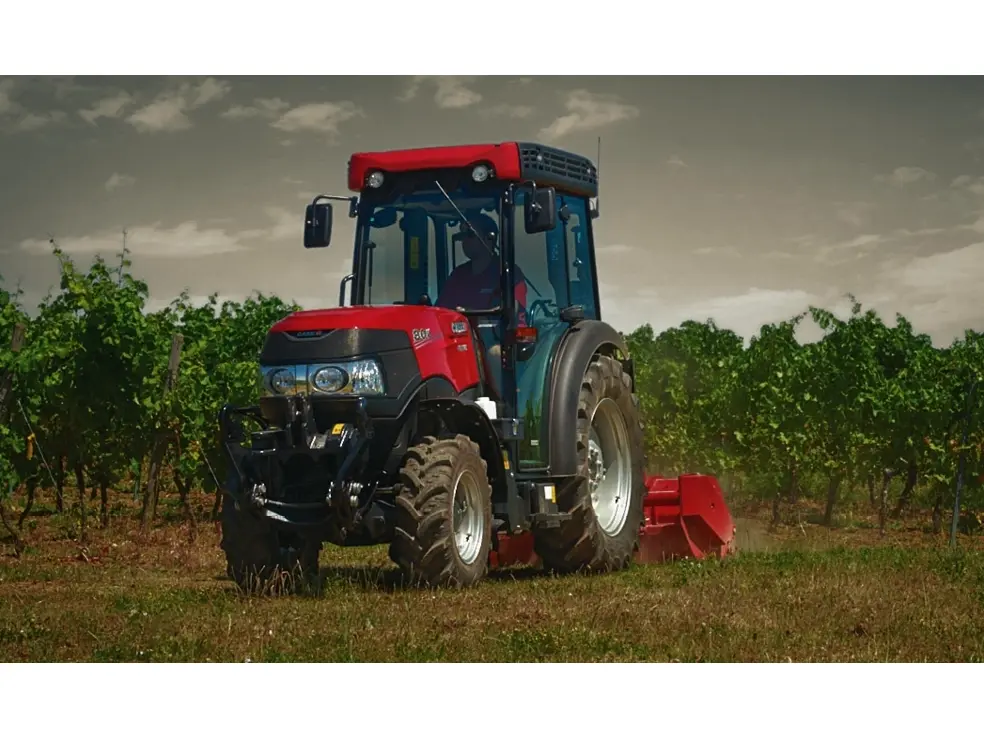

- Modèle : Farmall 80V
- Classification Horsepower : 80
- Drive Type : Wheeled Tractor
- Application : Vineyard
- Engine Power Hp [ Kw ] : 74 [55]
- Maximum Power Hp [ Kw ] : 74 [55]
- Pto Power Hp [ Kw ] : 65 [48.5]
- 540 Available? : Yes
- 540e Available? : Yes
- Engine Make : Case Ih Fpt
- Engine Model : 3.4 L
- Transmission Type : 4 Synchro Gears, 4 Non-synchro Ranges
- Number Of Forward Speeds : 16
- Number Of Reverse Speeds : 16
- Maximum Speed Forward - Mph (kph) : 19 Or 25 (30 Or 40)
- Implement Pump Flow Gallons (us) / Min [ Lt/min ] : 16.9 [64]
- Number Of Remote Valves : 2 Or 3 Rear; 2 Mid
- 3-point Hitch Category : Category 1/2
- Standard Lift Capacity 24 Inches Behind Pin Lbs [ Kg ] : 3780 [1715]
- Standard Lift Capacity At Lift Pin Lbs [ Kg ] : 5732 [2600]
- Wheelbase/trackbase Inches [ Mm ] : 96 [2438]
- Length Inches [ Mm ] : 148.8 [3779]
- Height To Top Of Cab Inches [ Mm ] : 91.7 [2329]
- Height Of Top Of Rops Inches [ Mm ] : 90 [2287]
- Overall Width Inches [ Mm ] : 42.5 [1079]
