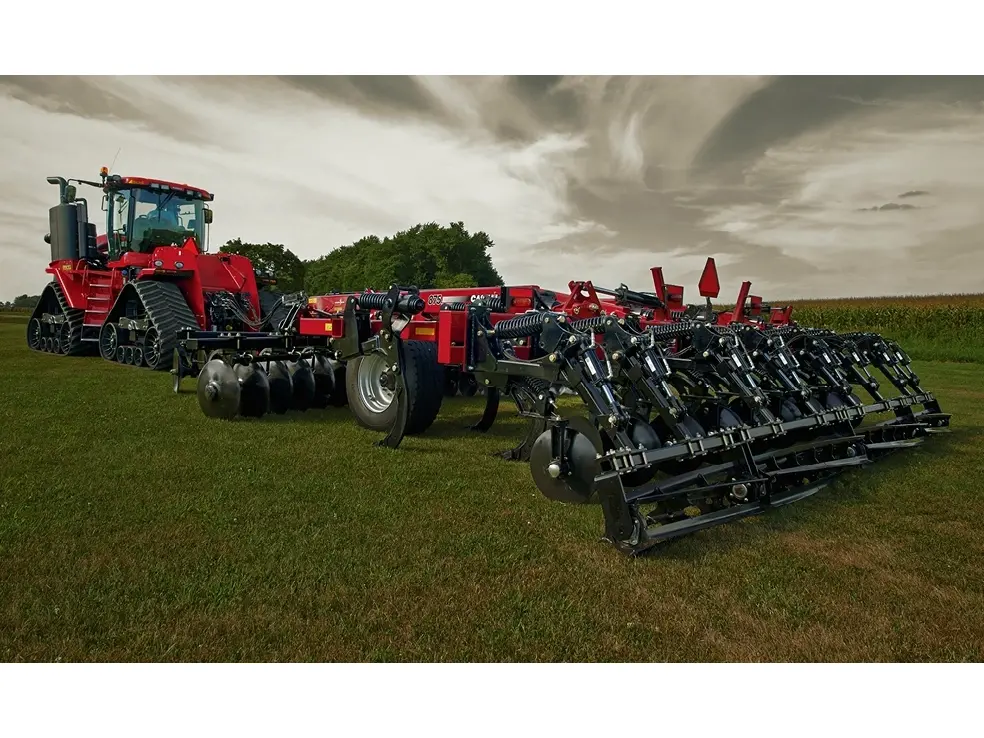

- Manufacturier : Case IH
- Modèle : Ecolo-Tiger 875
- Working Width Ft/in [ M ] : 14 Ft [4.27]
- Transport Width Ft/in [ M ] : 16 Ft [4.88]
- Overall Length Ft/in [ M ] : 33 Ft 4 In [10.19]
- Total Weight Lbs [ Kg ] : 14470 [6560]
- Number Of Main Shanks : 7
- Shank Spacing Inches [ Mm ] : 24 [610]
- Shank Operating Depth, Maximum - In (mm) : 14 (356)
- Shank Depth Adjustment Method : Single-point Depth Control, Crank
- Optional Depth Adjustment Method : Afs Soil Command, Tractor Console
- Standard Shank Design : Parabolic, Spring Reset
- Standard Shank Trip Force Lbs [ Kg ] : 3000 [1360]
- Optional Shank Design : Parabolic, Shear Bolt
- Underframe Clearance Inches [ Mm ] : 36.5 [927]
- Shank Trip Clearance Inches [ Mm ] : 13 [330]
- Primary Blade Type, Disk Or Coulter : Disk
- Blade Diameter Inches [ Mm ] : 24 [610] Std; 26 (660) Opt.
- Blade Thickness Inches [ Mm ] : 0.256 [6.5]
- Blade Spacing - In (mm) : 15 (381) W/ 24" Std; 12 (305) W/ 26" Opt.
- Blade Mounting, Individual Or Gang : Individual "c" Hangers W/24" Std; Gangs W/ 26" Opt
- First Blade Angle Or Gang Angle - Degrees : 15
- Second Blade Angle Or Gang Angle - Degrees : 15
- Blade Operating Depth, Maximum - In (mm) : 4 (102)
- Depth Adjustment, Disc/coulter Gangs/beams Only : Independent Hydraulic Disk Depth Control; Afs Soil Command Optional
- Primary Rear Blade Type, Disk Or Coulter : Rear Disk Levelers To Fill In Shank Path
- Rear Blade Diameter Inches [ Mm ] : 18 [459]
- Rear Blade Spacing Inches [ Mm ] : Opposing Disks Behind Each Shank
- Rear Mounting, Individual Or Gang : Pairs
- Rear Blade Angle Or Gang Angle - Degrees : Opposing Angles To Level Shank Furrows
- Rolling Reel / Basket Available, Standard Or Optional : Hydraulic Double Edge Reel, Optional
- Spike Harrow, Available, Standard Or Optional : Optional
- Coil Tine Harrow Available, Standard Or Optional : Optional
- Rear Hitch : No
- Other Optional Attachment : No
- Fore-aft Sequence Of Blades, Shanks, Rear Attachments : Disk-disk-shanks-leveler Disks
- Manufacturer's Description Of Machine : Disk Ripper
- Frame Description, Non-folding, Folding, Flex : Non-folding
- Pull Type Hitch System, Rigid Or Level Lift : Constant Level Hitch, Adjustable
- Transport Wheel Mounting, Single, Dual, Walking Tandem : Single
- Transport Tire Size (number Of Tires) : 425/65 R22.5 (two Singles) Std.; Vf445/65 R22.5 Opt.
- Required Power - Hp (kw) : 280 To 420 (209 To 313)
