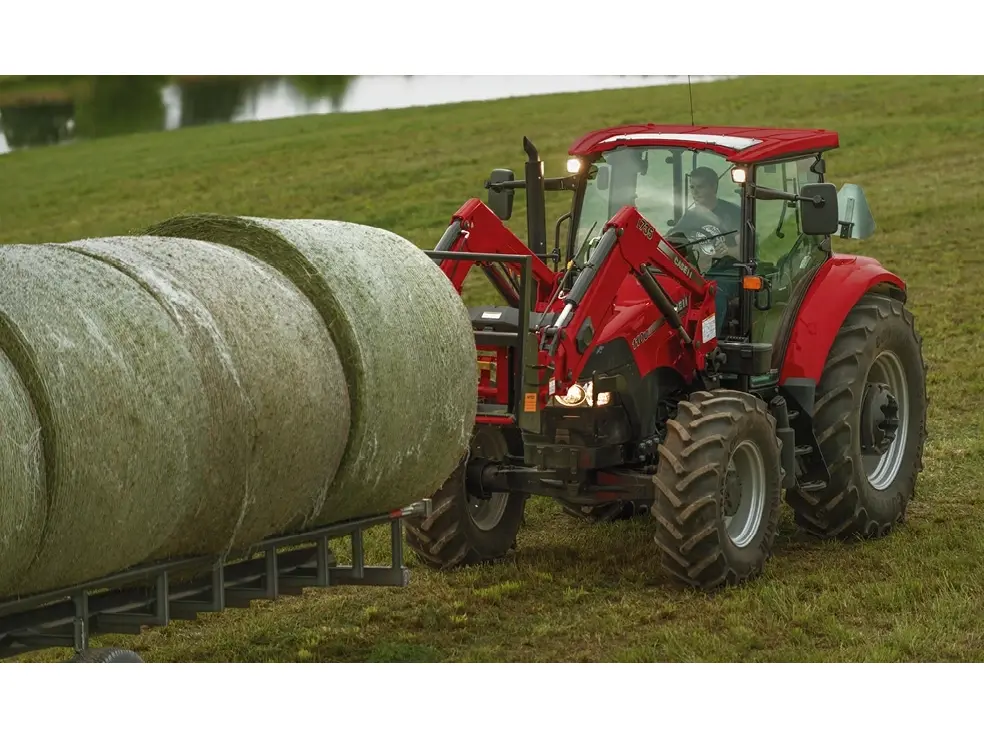

Case IH Farmall Utility 110U

Specifications

  • Manufacturer: Case IH
  • Model: Farmall Utility 110U
  • Classification Horsepower: 110
  • Drive Type: Wheeled Tractor
  • Drive Configuration: 4wd
  • Application: Utility Tractor
  • Engine Power Hp [ Kw ]: 107 [80]
  • Pto Power Hp [ Kw ]: 93 [69]
  • 540 Available?: Yes
  • 540e Available?: Yes
  • 1000 Available?: Yes
  • 1000 Available?: Yes
  • Engine Make: Fpt
  • Transmission Type: Semi Powershift
  • Number Of Forward Speeds: 16
  • Number Of Reverse Speeds: 16
  • Implement Pump Flow Gallons (us) / Min [ Lt/min ]: 21.1 [80]
  • Number Of Remote Valves: 2 Std; 3 Opt
  • Standard Lift Capacity 24 Inches Behind Pin Lbs [ Kg ]: 8809 [3996]
  • Max. Lift Capacity Lbs [ Kg ]: 8809 [3996]
  • Wheelbase/trackbase Inches [ Mm ]: 93.7 [2380]
  • Length Inches [ Mm ]: 165 [4191]
  • Height To Top Of Cab Inches [ Mm ]: 107 [2720]
  • Overall Width Inches [ Mm ]: 88.5 [2248]
  • Weight, Total Allowable Lbs [ Kg ]: 17637 [8000]
